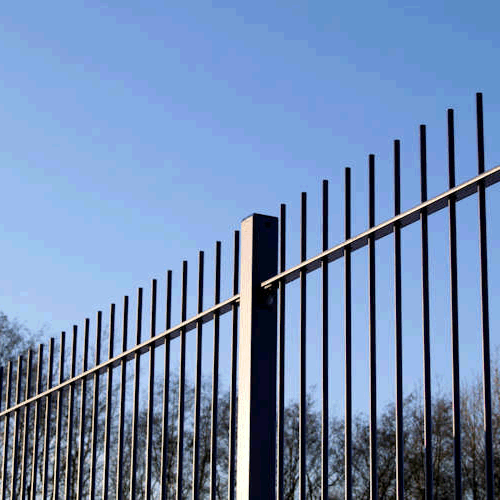

1.2M High 16mm Bar Vertical Bar Railings
£49.01 per meter
In stock
SKU
6767865765-1-1-1-1-2-1
1.2M High 16mm Bar Vertical Bar Railings is available to buy in increments of 1
All Our Vertical Bar Railings are supplied assembled
As we manufacture our railings in house we can also make them to your custom specification. The prices quoted on this page are for our standard specification Vertical Bar Railings which can be seen in the detailed table below.
Our standard Vertical Bar Railings comes with 22 vertical bars per bay with 120mm bar centres.
We hold some stock but most of our Vertical Bar is made to order. We can supply our Vertical Bar Railings galvanised or galvanised and powder coated as stated above in virtually any RAL colour you choose, simply select the RAL colour above : OUR RAL COLOURS.
Full Technical Specification :
| Height | Rails ( m.s flat ) | Bar Dia (mm) | Posts | Post Centres |
Post Height ( Overall ) |
Tip Height |
| 900mm | 40 X 8 | 12 | 50X 50 RHS | 2.8 M | 1.5 M | 150 mm |
| 1 M | 40 X 8 | 12 | 50X 50 RHS | 2.8 M | 1.6 M | 150 mm |
| 1 M | 40 X 8 | 16 | 50X 50 RHS | 2.8 M | 1.6 M | 150 mm |
| 1.2 M | 40 X 8 | 12 | 50X 50 RHS | 2.8 M | 1.8 M | 150 mm |
| 1.2 M | 40 X 10 | 16 | 50X 50 RHS | 2.8 M | 1.8 M | 150 mm |
| 1.5 M | 40 X 10 | 16 | 50X 50 RHS | 2.8 M | 2.1 M | 150 mm |
| 1.8 M | 40 X 10 | 16 | 50X 50 RHS | 2.8 M | 2.4 M | 150 mm |
| 1.8 M | 50 X 10 | 20 | 102 X 44 RSJ | 2.75 M | 2.4 M | 150 mm |
| 2 M | 50 X 10 | 20 | 102 X 44 RSJ | 2.75 M | 2.6 M | 150 mm |
| Tech Sheet | Vertical-Bar-Railings.pdf |
|---|
